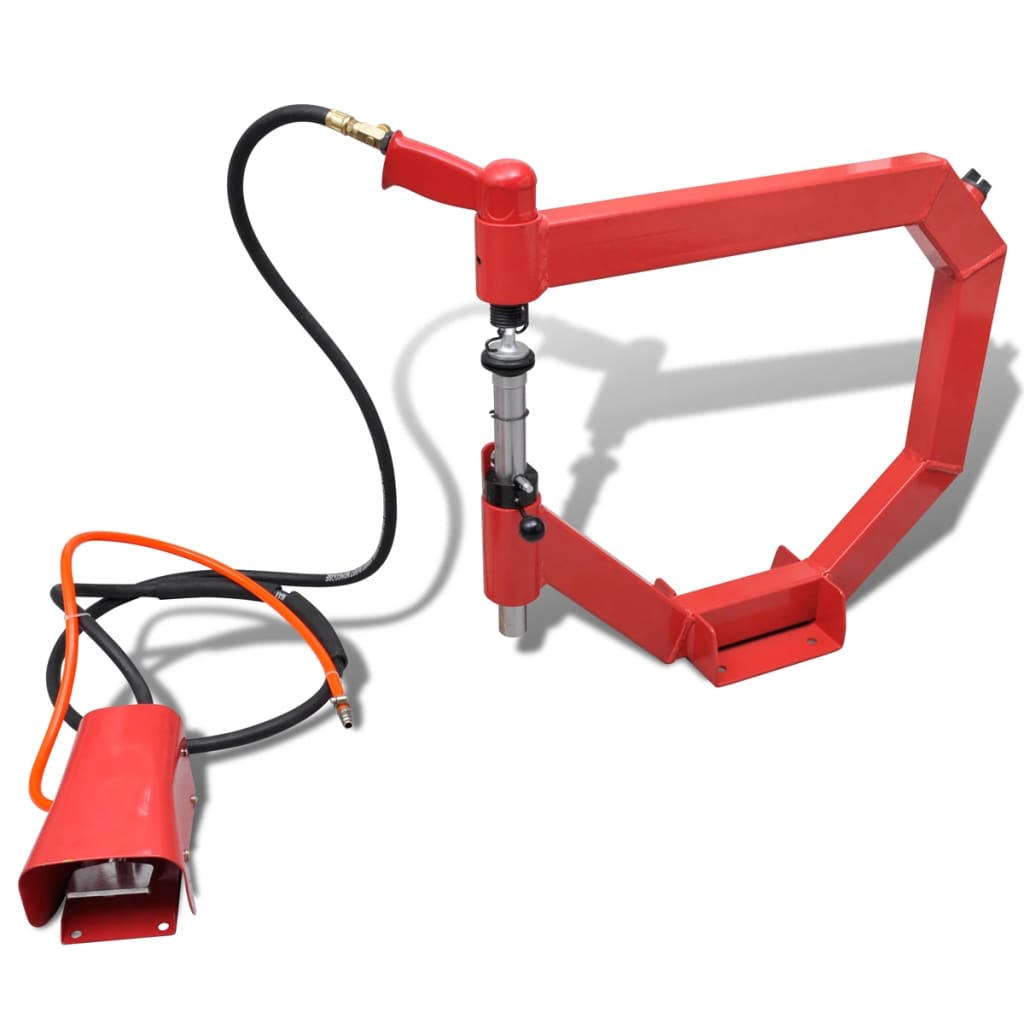

This high projection pneumatic planishing hammer is an invaluable tool for designing, smoothing or stretching of sheet metal, aluminum, cooper, brass and other metals.

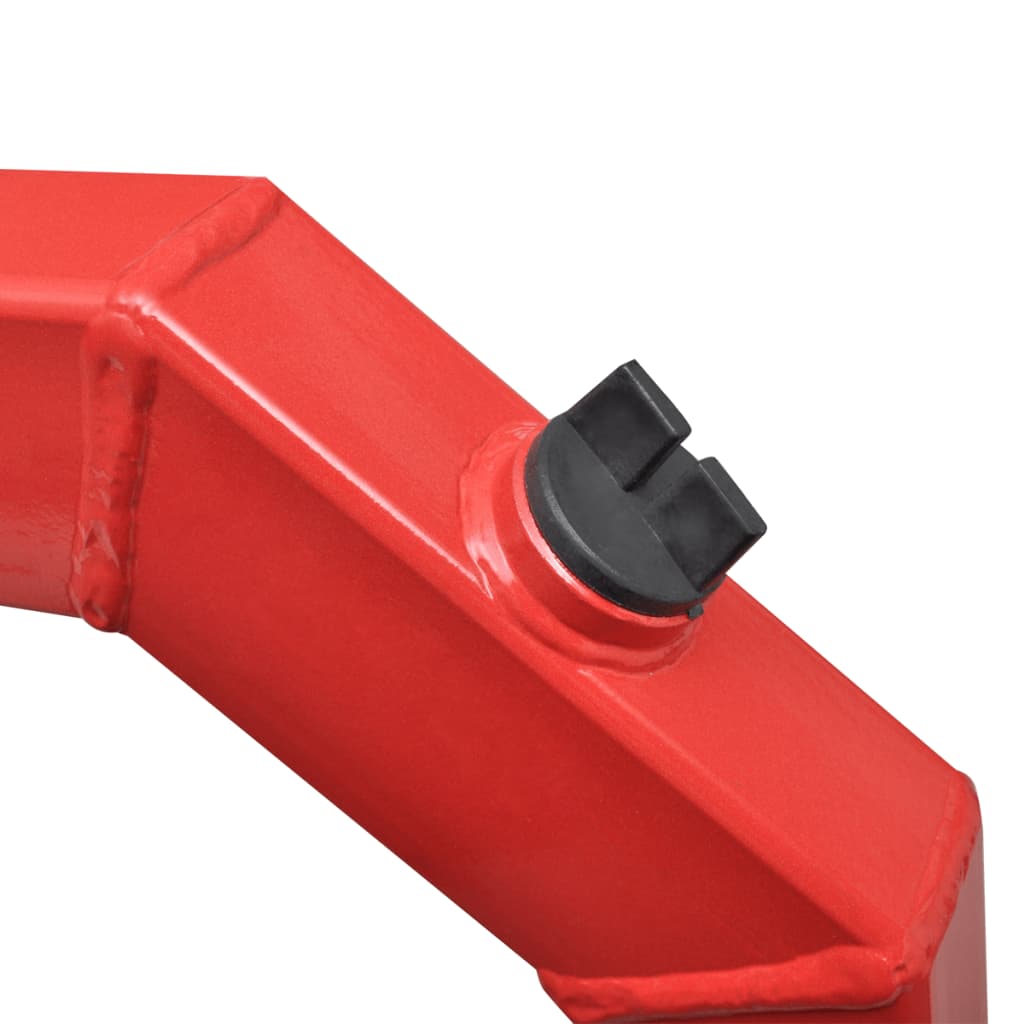

The compressed air planishing hammer is scientifically designed. It is hands free by foot operation. You can mount the hammer on the floor or table according to your actual needs. And sand can be filled in the robust tubular steel frame to absorb shock.

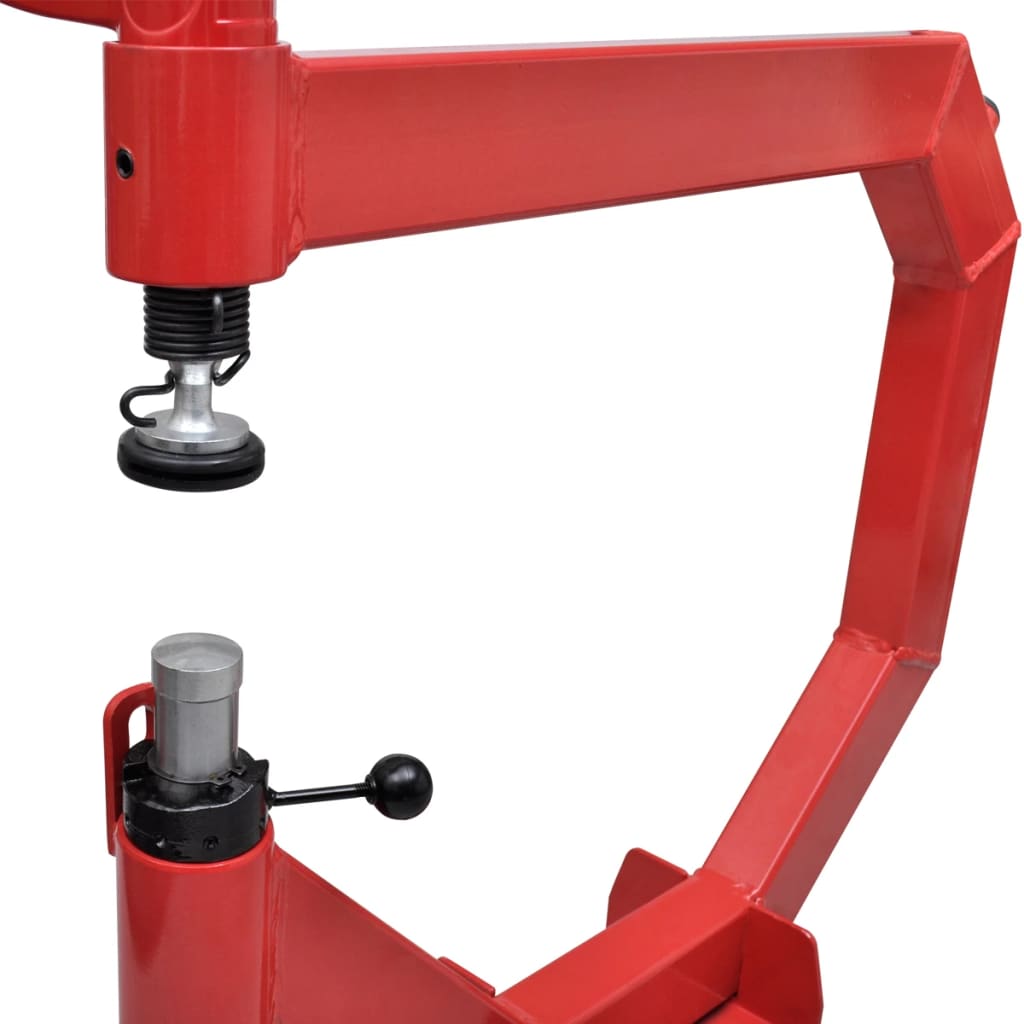

- Robust tubular steel frame
- Projection: 495 mm
- Editable sheet thickness: 0 – max. 4 mm

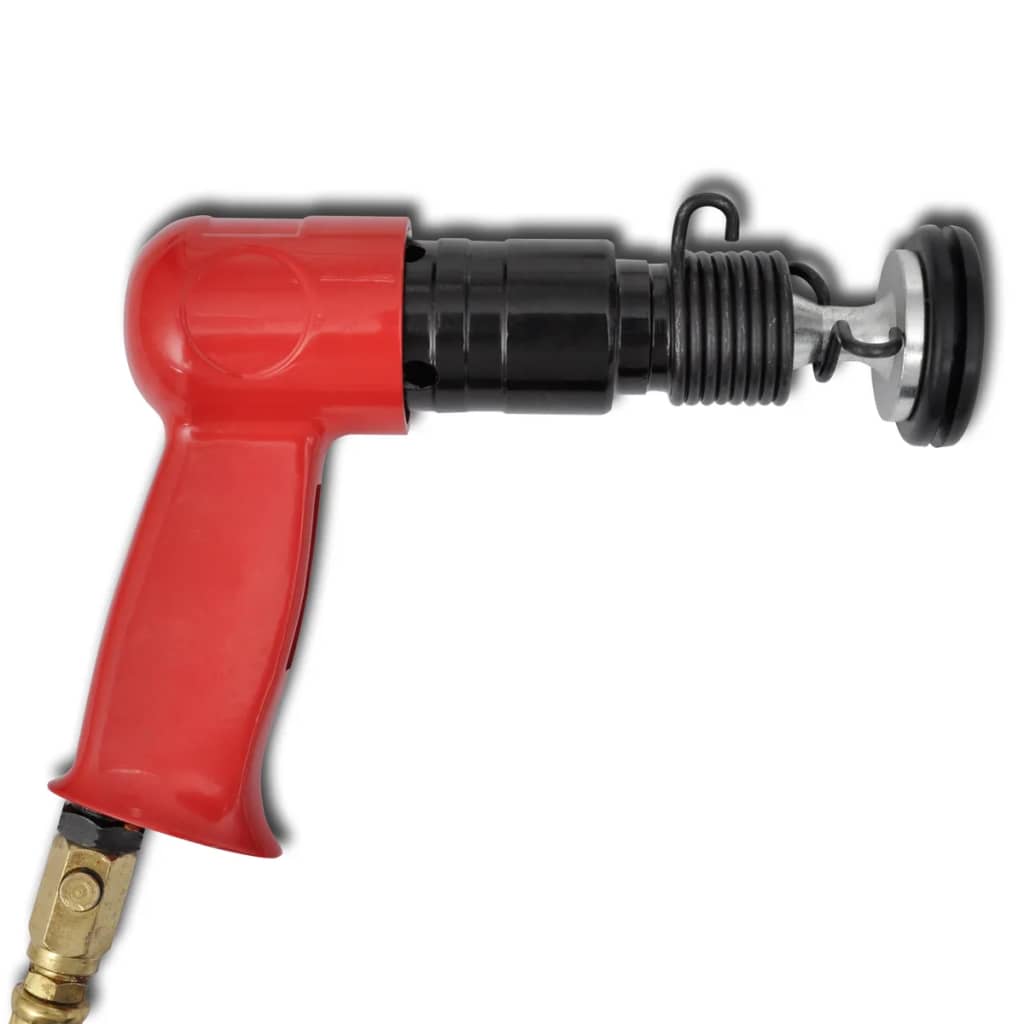

- Operating pressure: 3,5 – 6,5 bar pressure at the gun handle which is separately adjustable

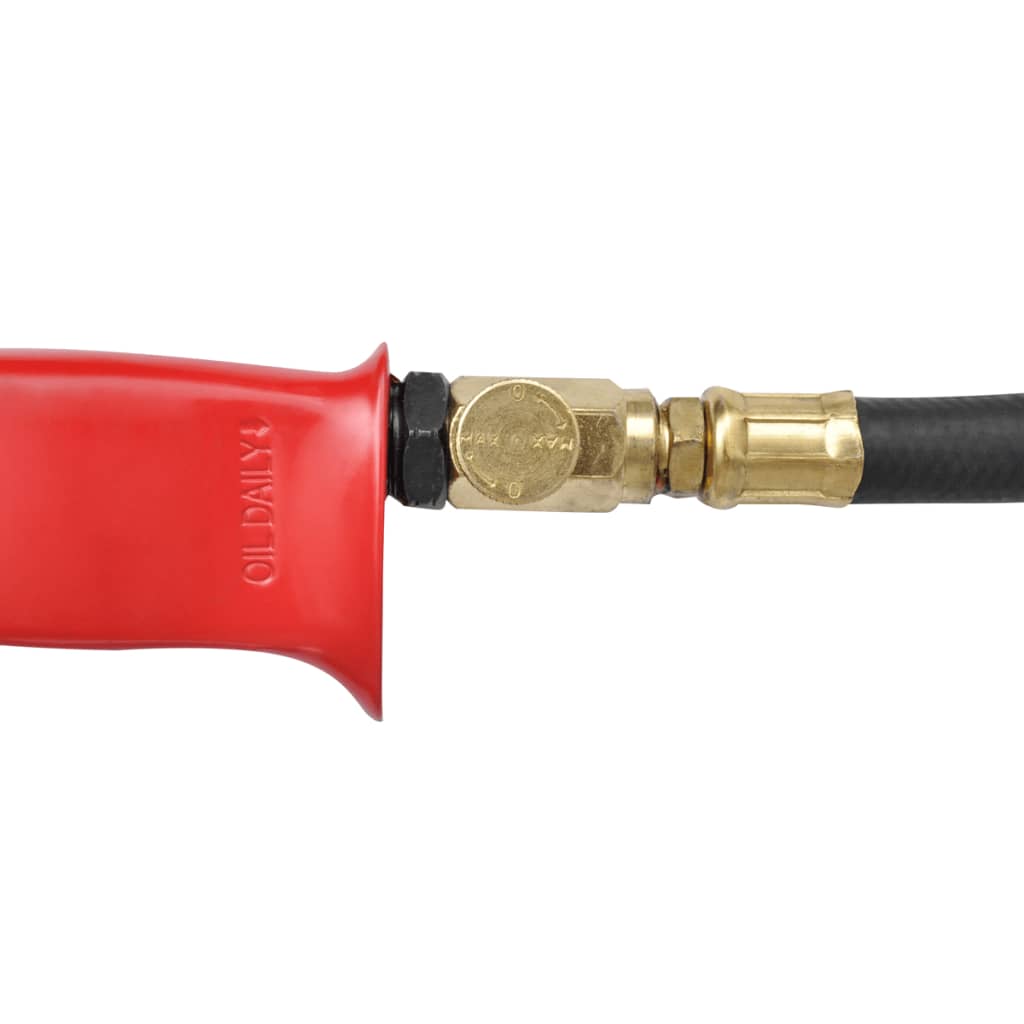

- Connection via standard 1/4” nipple
- Air requirement: from about 200 liters / min
- Impact frequency: 875 – 1350 / min

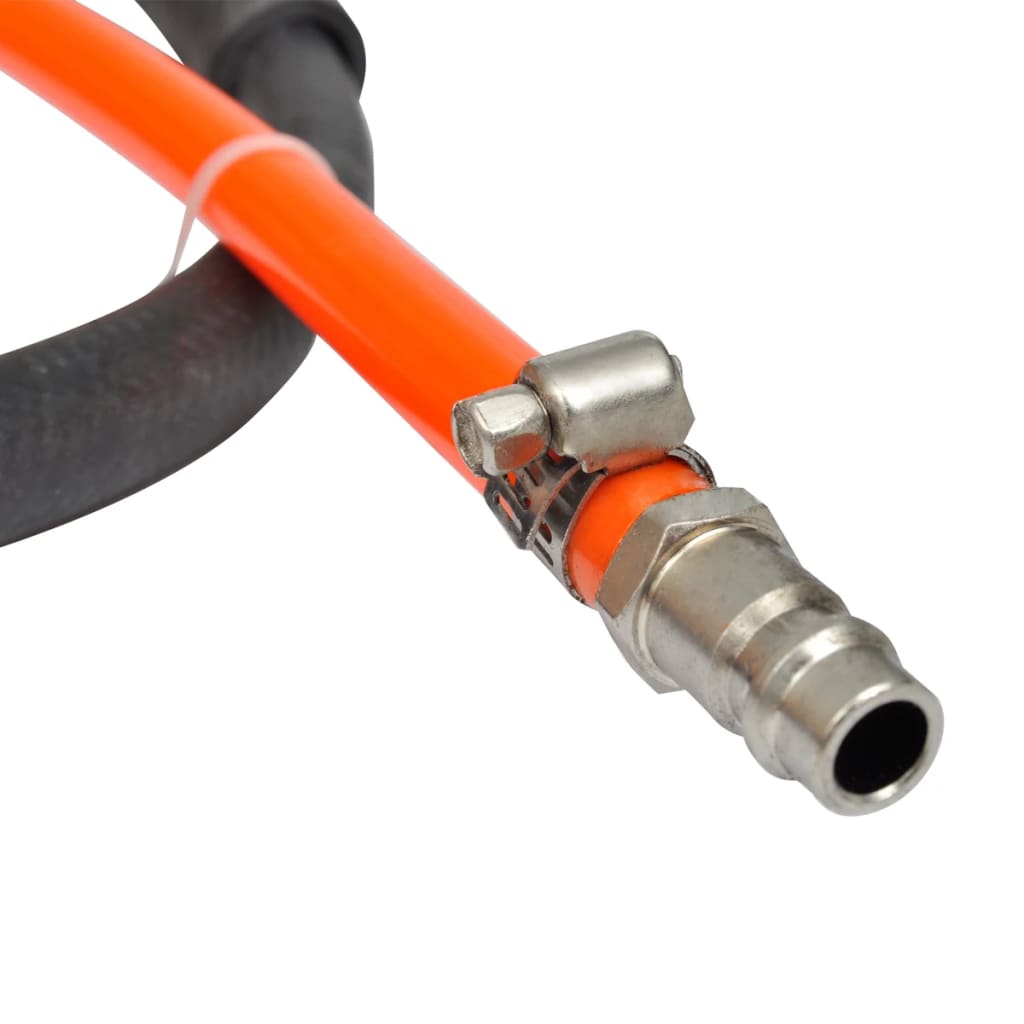

- Supply main air connection: 100 cm
- Supply to the gun handle: 250 cm
- Overall dimensions: 60 x 14 x 58 cm (l x w x h)
- Total weight: 15 kg
- Foot operation
- Can be mounted on table
