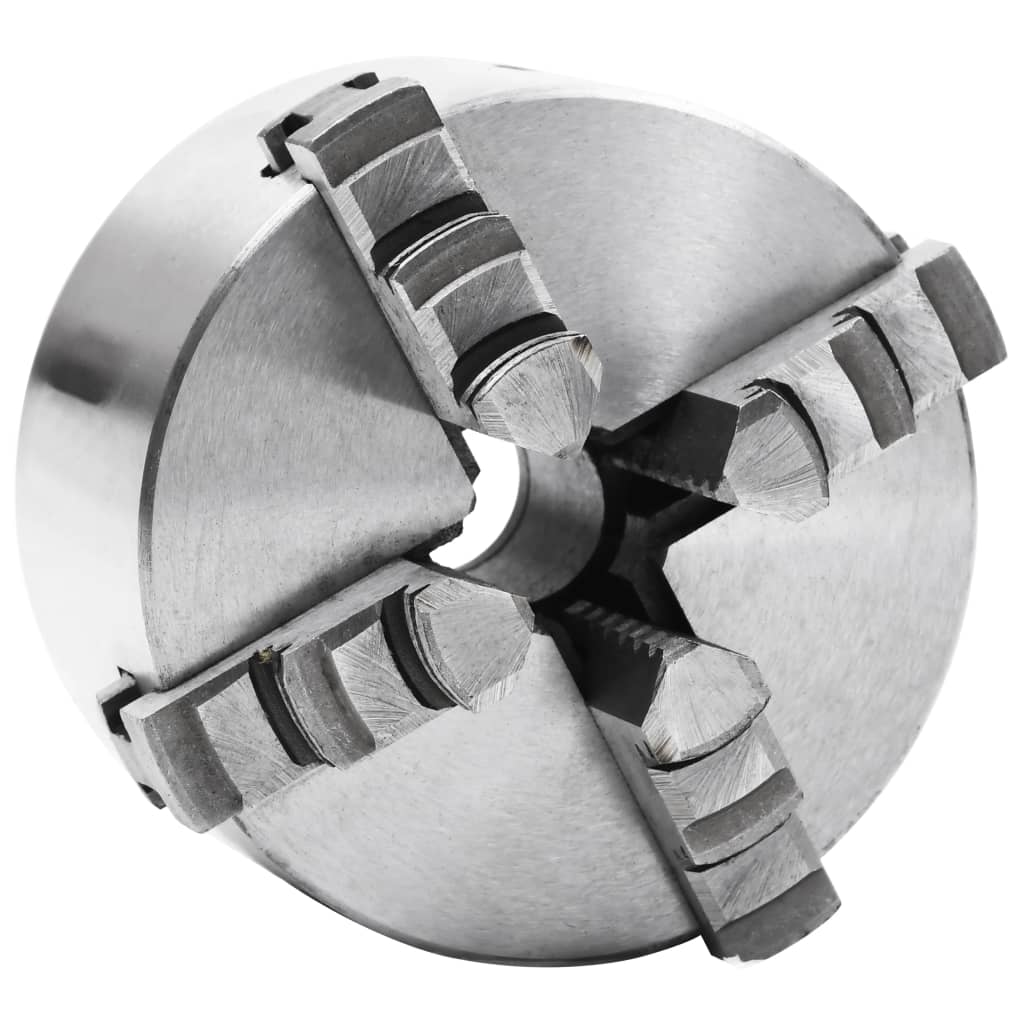

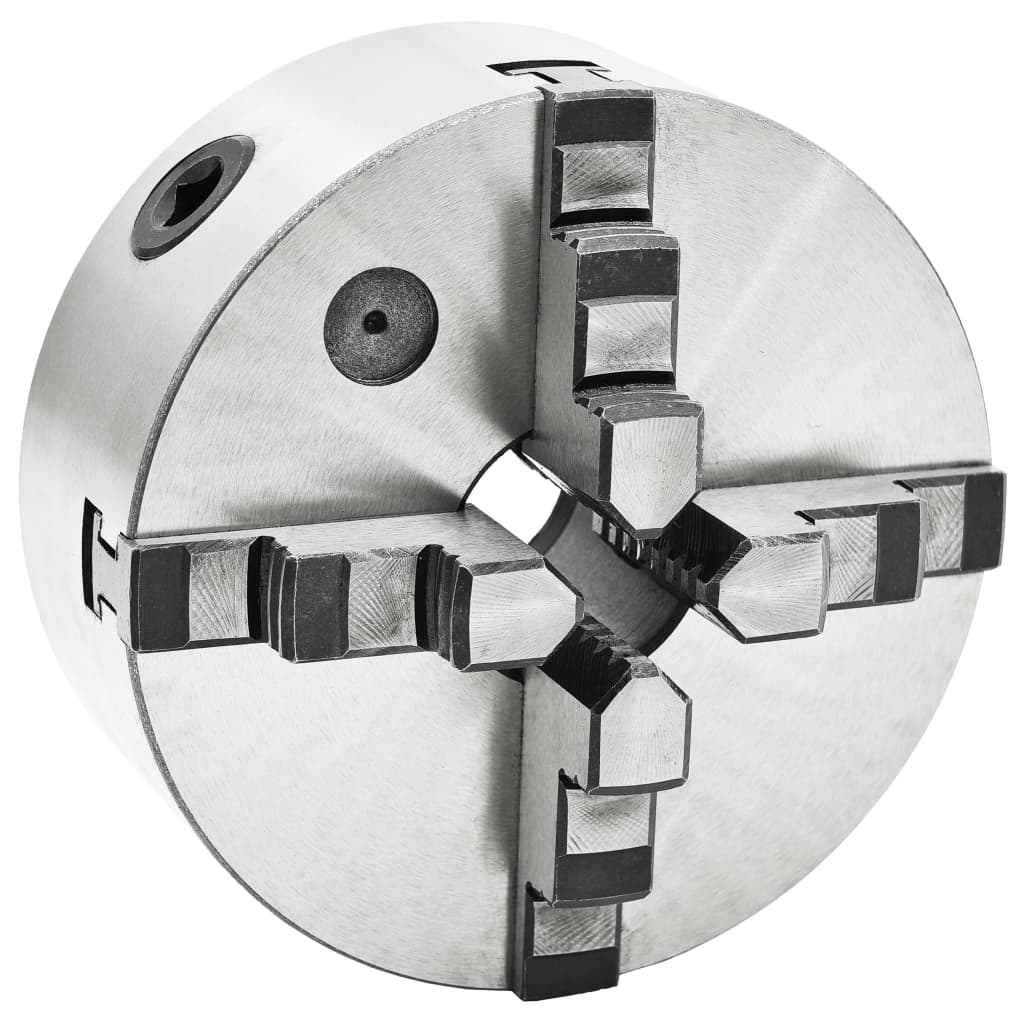

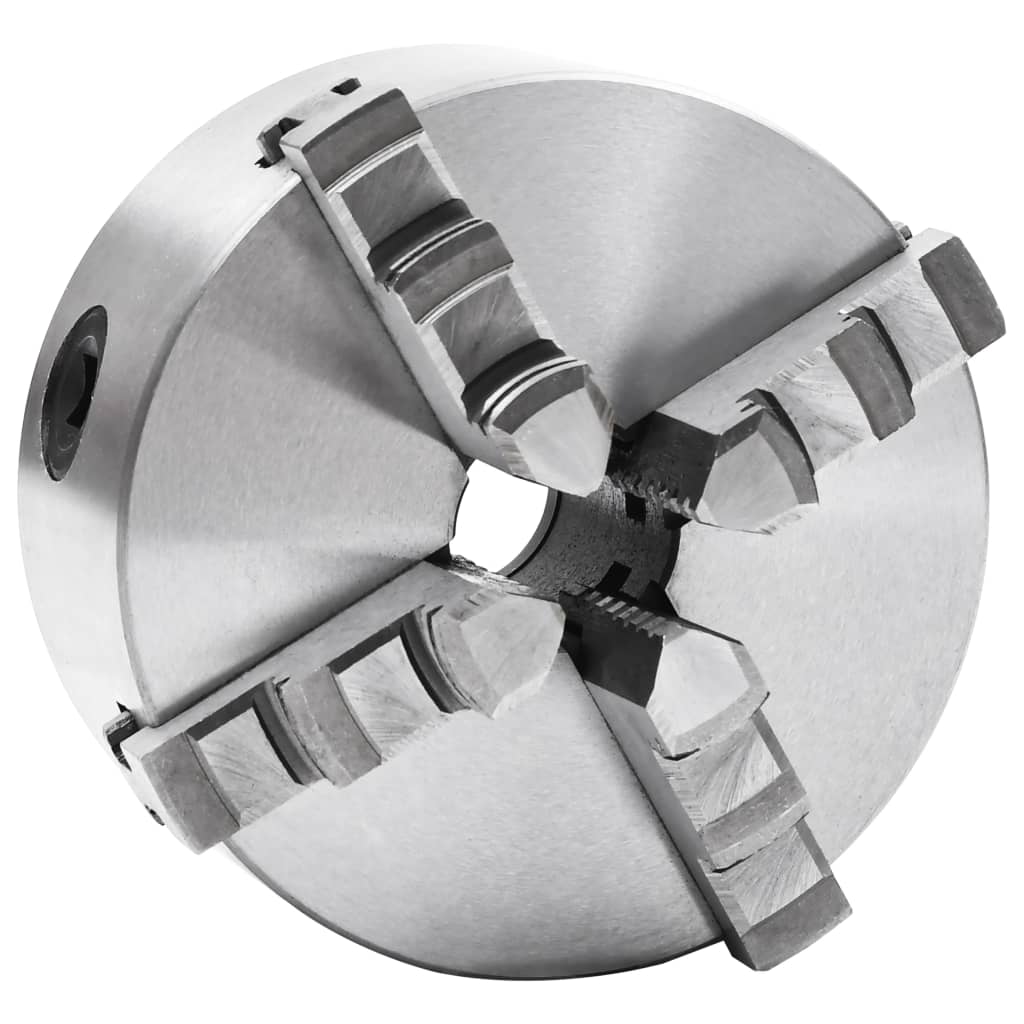

This wood chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material, or a hexagonal material.
This self-centering chuck is made of steel, making it strong and durable. Featuring 4 jaw design, the chuck is easy to use and fits a wide range of wood chucking lathe.
- Colour: Silver and red
- Material: Steel
- Overall diameter: 96 mm
- Number of jaws: 4
- Thread: M 33 with pitch 3.5
- Depth without jaws: 50 mm
- Depth with jaws: 71 mm
- External clamping width: 45 mm - 81 mm
- Inner span: 32 mm - 67 mm
- Thread depth: 55 mm
- Maximum speed: 3000 R/min
- Net weight: 2.4 kg
- Self-centering
- Assembly required: Yes
- Delivery contains:
- 1 x Chuck
- 1 x Spanner
- 1 x "T" spanner
- 1 x Wood screw
